Maxwell® 16 Clinical System
Personal Automation™ for the Clinical Lab
HLA/Transplant
The Maxwell® 16 system brings Personal Automation™ to low- to moderate-throughput automated DNA extraction from blood, buffy coat or buccal swabs. Using this tool, clinical laboratories can improve efficiency while ensuring consistent purification results.
Maxwell® 16 Buccal Swab LEV DNA Purification Kit, AS1295
The Maxwell® 16 Buccal Swab LEV DNA Purification Kit provides automated, high DNA yield.
-
Improve your patient experience: Use non-invasive buccal swab collection devices
-
Reduce repeats and cost: Sufficient yield and purity from a single swab to perform downstream assays
-
Fast and easy: Minimal sample transfer step
Promega Quantification Data from One and Two Swabs
| |
ng/µl |
260/280 |
260/230 |
|
|
ng/µl |
260/280 |
260/230 |
| 2 swabs |
121.85 |
1.81 |
1.52 |
|
1 swab |
97.98 |
1.88 |
1.94 |
| 2 swabs |
209.01 |
1.82 |
1.64 |
|
1 swab |
190.01 |
1.73 |
1.4 |
| 2 swabs |
276.45 |
1.87 |
1.74 |
|
1 swab |
65.06 |
1.82 |
1.67 |
| 2 swabs |
274.13 |
1.8 |
1.55 |
|
1 swab |
194.52 |
1.76 |
1.41 |
| 2 swabs |
122.16 |
1.8 |
1.58 |
|
1 swab |
251.36 |
1.96 |
2.09 |
| 2 swabs |
173.5 |
1.91 |
1.82 |
|
1 swab |
121.88 |
1.88 |
1.78 |
| 2 swabs |
235.9 |
1.81 |
1.69 |
|
1 swab |
136.33 |
1.88 |
1.96 |
| AVERAGE |
201.86 |
1.83 |
1.65 |
|
1 swab |
147.6 |
1.91 |
2.15 |
|
|
|
|
|
AVERAGE |
150.59 |
1.85 |
1.8 |
Data suggest DNA concentration is compatible with multiple HLA assays without the need to concentrate. While two swabs did yield more DNA, the amount was not linear. Variability between samples is normal as the amount of DNA recovered will depend on donor and collection technique. Concentration requirements for the SSP kit tested are 75-125ng/µl.
Maxwell® 16 LEV Blood DNA Kit, AS1290
Saves time with no buffy coat preparation and delivers buffy coat- like yield & concentration from whole blood.
Legend: DNA Yield and concentration from blood samples obtained from 4 individual donors. 300 µl of whole blood was processed with the LEV Blood DNA Kit. 3 replicates were performed from each donor.
Maxwell® 16 Blood DNA Purification Kit, AS1010

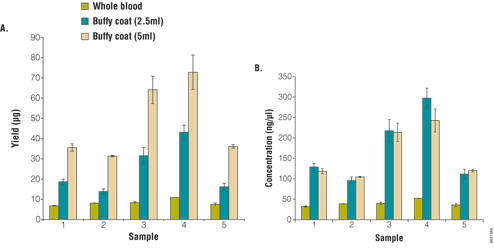

Legend: DNA yield and concentration from blood samples obtained from 5 individual donors using the Maxwell® 16 Blood DNA Purification Kit. For whole blood processing, 400µl of sample was processed. For buffy coat processing, either 250µl or 500µl of buffy coat fraction was processed.
No Detectable Cross-Contamination

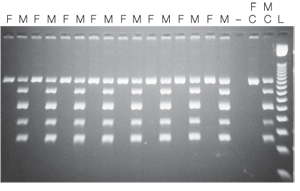

Legend: DNA was purified from alternating 300µl blood samples obtained from male (M) and female (F) donors. Extracted DNA was subjected to qualitative PCR, and the amplification products visualized on a gel.
Consistent Results

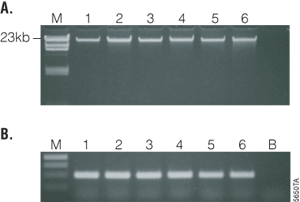

Legend: DNA purified from blood samples obtained from 6 individual donors. Panel A: Aliquots from each sample were resolved by agarose gel electrophoresis. Lane M, Lambda DNA/Hind III markers. Panel B: Equal volumes of each sample were amplified by PCR. Lane M, DNA ladder; Lane B, No template control.
