PowerPlex® Y23 System
5-Dye STR Multiplex for Amplification of 23 Y-STR Loci
- High sensitivity in the presence of female DNA
- High tolerance for inhibitors
- Rapid-cycling protocols reduce amplification time by half
Catalog Number:
Choose a product
Size
Catalog Number: DC2305
Catalog Number: DC2320
Catalog Number: DM6571
Amplify 23 Y-STR Loci in a Single Reaction

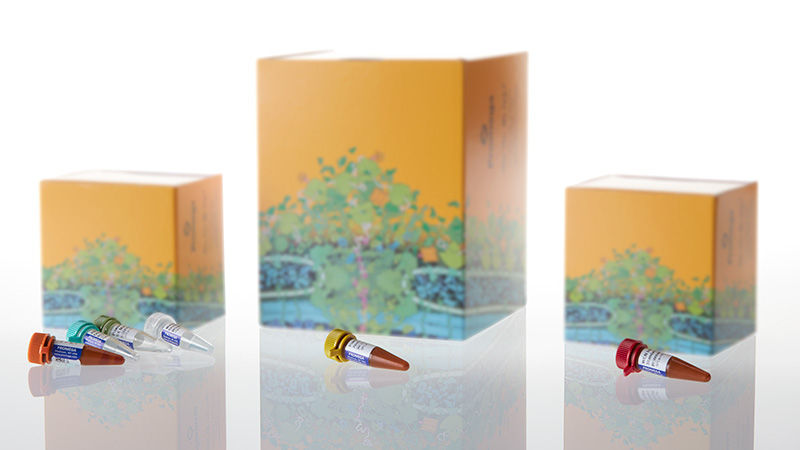

The PowerPlex® Y23 System is a 23-loci, 5-color Y-STR multiplex designed for genotyping forensic casework samples, database samples and paternity samples. Higher power of discrimination from 23 loci results in fewer false-positive matches and more meaningful STR analysis. A single kit for both casework and databasing simplifies your workflow.
The PowerPlex® Y23 System allows co-amplification and four-color detection of 23 male-specific STR loci: DYS576, DYS389I/II, DYS448, DYS19, DYS391, DYS481, DYS549, DYS533, DYS438 (penta), DYS437, DYS570, DYS635, DYS390, DYS439, DYS392, DYS643 (penta), DYS393, DYS458, DYS385a/b, DYS456 and Y-GATA-H4.

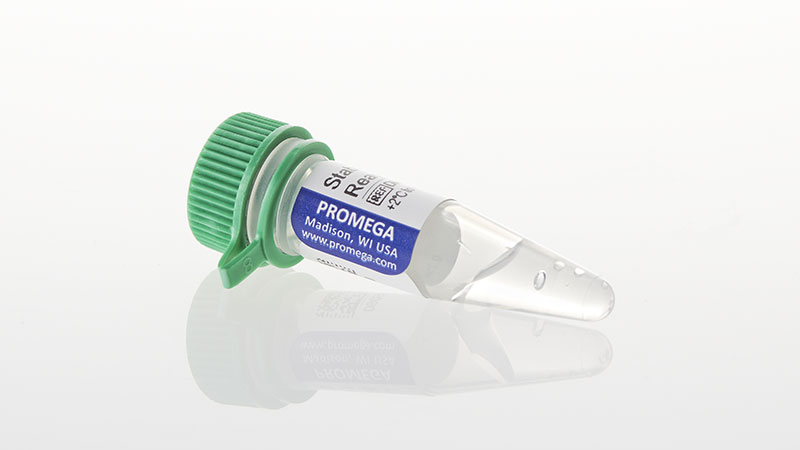

For laboratories that store their plates up to 48 hours prior to injection, we recommend the use of the optional Stabilizer Reagent (Cat.# DM6571), sold separately.
New!
Learn how to interpret results from Y-STR DNA typing using the Y-Chromosome Haplotype Reference Database (YHRD), a free resource.
Promega forensic products are manufactured in alignment with the ISO 18385 standard. This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.
Amplify Only Male DNA
The PowerPlex® Y23 System can successfully amplify trace amounts of male DNA, even in the presence of overabundant amounts of female DNA.
Obtain Full Profiles from the Most Challenging Samples
The PowerPlex® Y23 System is a robust multiplex that is tolerant of many amplification inhibitors, including hematin, tannic acid and humic acid. The robust performance of the kit results in more interpretable data and less need for re-amplification of inhibitor-laden samples.
Streamline Workflows with Direct Amplification
The PowerPlex® Y23 System also is compatible with direct amplification, enabling streamlined Y-STR databasing efforts. Amplification can be successfully performed with sample types such as FTA® card punches as well as pretreated swabs, Bode Buccal DNA Collector™ punches or S&S 903 punches. Faster cycling conditions cut amplification time almost in half. Moreover, reduced sample-processing time and faster cycling conditions provide a significant time savings in every run.
Buccal Sample on FTA® Card
Swab Sample with SwabSolution™ Reagent
Buccal Sample with PunchSolution™ Reagent
Rapid Processing Solutions for PowerPlex® Systems
The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.
Which Product is Right for Me?
Protocols
Complete Protocol
Protocolos Rápidos
Specifications
Catalog Number:
Contenido
| Item | Part # | Presentación | Concentración | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
| PowerPlex® Y23 5X Master Mix | DP108A | 1 × 250μl | ||
|
Water, Amplification Grade |
DW099A | 1 × 1,250μl | View Product | |
| PowerPlex® Y23 Allelic Ladder Mix | DG248B | 1 × 25μl | ||
WEN Internal Lane Standard 500 Y23 |
DG520A | 1 × 200μl | View Product | |
| PowerPlex® Y23 10X Primer Pair Mix | DK209B | 1 × 125μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
Not For Medical Diagnostic Use.Condiciones de Almacenaje
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
Contenido
| Item | Part # | Presentación | Concentración | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product | |
| PowerPlex® Y23 Allelic Ladder Mix | DG248B | 4 × 25μl | ||
WEN Internal Lane Standard 500 Y23 |
DG520A | 1 × 200μl | View Product | |
| PowerPlex® Y23 10X Primer Pair Mix | DK209B | 4 × 125μl | ||
| PowerPlex® Y23 5X Master Mix | DP108A | 4 × 250μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
Not For Medical Diagnostic Use.Condiciones de Almacenaje
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
Contenido
| Item | Part # | Presentación |
|---|---|---|
Stabilizer Reagent |
DM657A | 1 × 0.25ml |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Condiciones de Almacenaje
