10bp DNA Step Ladder
Ten Blunt-Ended DNA Fragments of 10–100bp in 10bp Increments
- Load 1μl/lane
- Supplied at a concentration of 0.65µg/μl
- Supplied with 6X Blue/Orange Loading Dye
- Intended for Laboratory Use (GPR) in the United States. Outside of the United States, this product is intended for research use only unless otherwise stated
Catalog Number:
Size
Catalog Number: G4471
DNA Step Ladders have defined sizes with exact incremental steps between bands. The ladders are not intended for use in quantitative analysis. The DNA fragments may be stained with ethidium bromide.

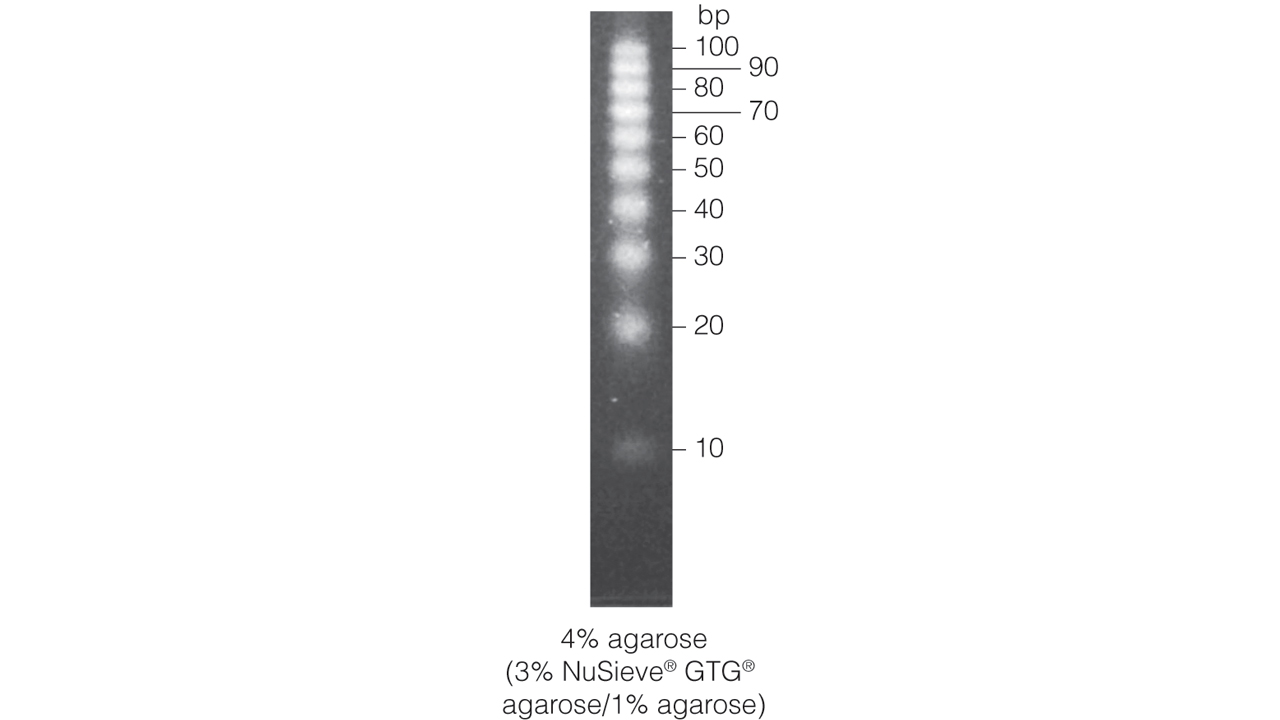

The 10bp DNA Step Ladder has ten blunt-ended DNA fragments ranging from 10bp to 100bp in exactly 10bp increments. All of the bands are of approximately equal intensity with the exception of the 10bp band, which may appear slightly less intense.
Storage Buffer: 10mM Tris-HCl (pH 7.4), 1mM EDTA
Protocols
No protocols available
Specifications
Catalog Number:

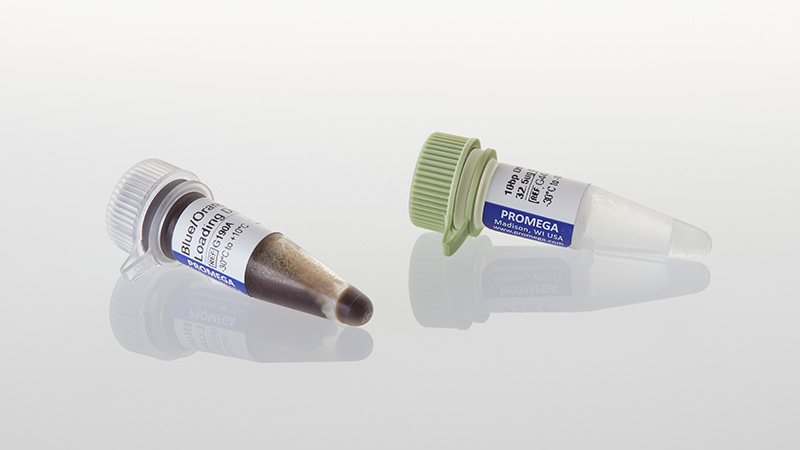

What's in the box?
| Item | Part # | Size | Concentration |
|---|---|---|---|
|
Blue/Orange 6X Loading Dye |
G190A | 1 × 1ml | |
|
10bp DNA Step Ladder |
G447A | 1 × 50μl | 650μg/ml |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.Storage Conditions
Resources
No related resources available
